Name: H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod For Hard Rock Mining Quarry
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: H19x108 मिमी
Price: 25.50 USD
Availability: InStock

होम उत्पाद रॉक ड्रिलिंग उपकरण

H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod For Hard Rock Mining Quarry

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	MIROC
प्रमाणन:	ISO
मॉडल संख्या:	H19x108 मिमी

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	$25.50
पैकेजिंग विवरण:	लकड़ी के मामले
प्रसव के समय:	20-30
आपूर्ति की क्षमता:	3000

संपर्क करें

विस्तृत उत्पाद विवरण

टांग:	हेक्स22/25/19	प्रोडक्ट का नाम:	इंटीग्रल ड्रिल रॉड
आवेदन:	रॉक ड्रिलिंग	लंबाई:	अनुकूलन
लंबाई विकल्प:	400 मिमी से 9600 मिमी तक होती है	बिट व्यास:	20 मिमी - 42 मिमी
प्रमुखता देना:	forged high manganese hex drill rod , hard rock mining integral drill rod , H19x108mm quarry drill rod

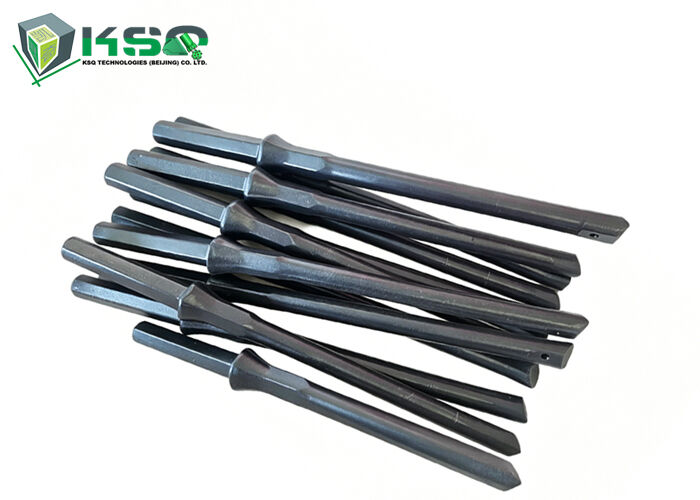

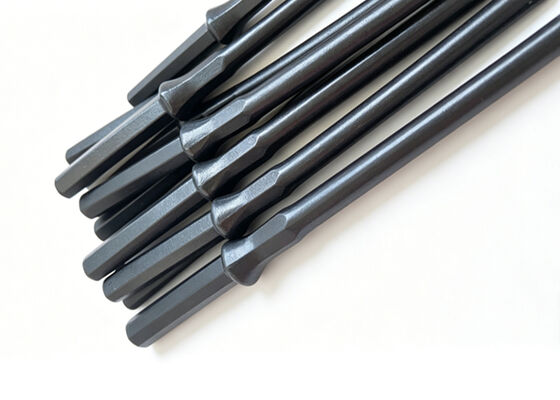

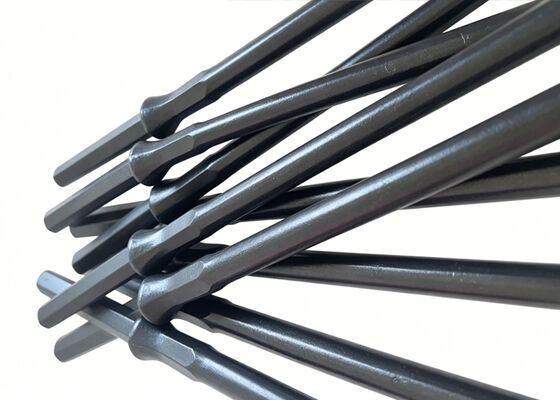

H19x108mm Length 228mm Forged High Manganese Hex Shank Integral Drill Rod

Integral Drill Rods (also known as integral drill steels) are specifically engineered for small-hole drilling applications in demanding environments including stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching operations.

These rods are ideally paired with small-power rock drills such as air leg rock drills and hand-held rock drills. By minimizing impact energy loss, they significantly improve drilling speed and operational efficiency. Designed for borehole diameters ranging from 23 mm to 45 mm.

Technical Specifications

Standard Configurations

Shank Types: H22×108mm, H19×108mm, standard hex
Bit Diameters: 20 mm - 42 mm
Length Range: 400 mm - 6,000 mm

Compatibility

All products are compatible with major brands including Atlas Copco, and are widely used in mining, water well drilling, tunneling, quarrying, construction, and civil engineering projects.

Performance Benefits

Through-hardened shank end provides high wear resistance and extended service life
Stainless steel flushing tube lining prevents corrosion and breakage
Super tough 40SiMnCrNiMo steel engineered for both wet and dry drilling conditions
Special anti-corrosion oil coating protects the flushing hole of the rod
High-quality insert secured using specialized bronze-brazing process

Product Dimensions & Weights

Item	Length (mm)	Length (inch)	Bit Diameter (mm)	Weight (kg)
Chisel Bit Integral Drill Steel Shank 19 x 108 mm (3/4" x 4 1/4")	400	1 1/3	29	1.3
	500	1 2/3	29	1.5
	800	2 5/8	28	2.2
	1000	3 2/7	28	2.6
	1200	4	27	3
	1600	5 1/4	27	3.9
	2400	7 7/8	26	5.7
	3200	10 1/2	25	7.5
	4000	13 1/8	24	9.2
