Name: R28 Thread 40mm Diameter Button Bit for Drifting and Tunneling Made of Alloy Steel & Tungsten Carbides
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: R28 40 मिमी
Price: 508.50 USD
Availability: InStock

होम उत्पाद रॉक ड्रिलिंग उपकरण

R28 Thread 40mm Diameter Button Bit for Drifting and Tunneling Made of Alloy Steel & Tungsten Carbides

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	MIROC
प्रमाणन:	ISO
मॉडल संख्या:	R28 40 मिमी

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
प्रसव के समय:	20-30
आपूर्ति की क्षमता:	3000

संपर्क करें

विस्तृत उत्पाद विवरण

सतह का उपचार:	चित्रकारी	विनिर्माण प्रक्रिया:	मशीनिंग
सामग्री:	मिश्र धातु स्टील और टंगस्टन कार्बाइड्स	प्रोडक्ट का नाम:	ड्रिलिंग रिग शीर्ष हथौड़ा
धागा:	आर 28	कक्षा:	मध्यम कठोर चट्टान
आवेदन:	बहती और सुरंग
प्रमुखता देना:	R28 Thread Button Bit , 40mm Diameter Rock Drill Bit , Alloy Steel & Tungsten Carbides Drilling Rig Top Hammer

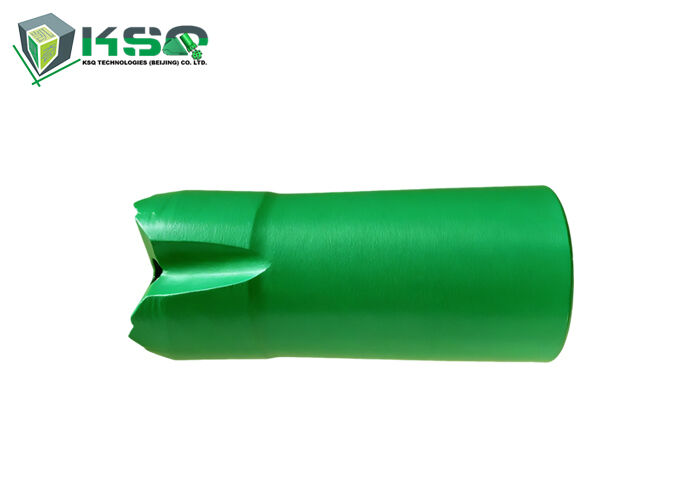

R28 40mm Thread Rock Drilling Button Bit for Drifting and Tunneling

Tungsten carbide button bits feature unique working properties that make them ideal for various demanding applications. These bits are widely used in oil drilling, snow removal equipment, quarrying, mining operations, tunnel engineering, and civil construction projects.

Manufacturing Advantages

Manufactured with highest quality carbide for stable and consistent performance
Processed using latest HIP sintering technology for ultimate quality
Strict quality control throughout production ensures customer standards
Wide selection of tungsten carbide grades and sizes available
Factory-direct shipping for shorter delivery times
Expert technical advice to optimize product performance and cost efficiency
Custom polished carbide inserts for button bits available
Custom design, development, and production based on customer requirements
Both blank and finished products available

Product Specifications

Part Number	Product Code & Description	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
4148300436	B737-R28-S, R28 Button Bit, Spherical Buttons	37	1 1/2	2x7	5x9	30°	1	1	0.5
4148300437	B638-R28-S, R28 Button Bit, Spherical Buttons	38	1 1/2	2x8	4x9	30°	1	2	0.6
4148300438	B738-R28-S, R28 Button Bit, Spherical Buttons	38	1 1/2	2x7	5x9	30°	1	1	0.6
4148300439	B741-R28-S, R28 Button Bit, Spherical Buttons	41	1 3/5	2x8	5x9	35°	1	1	0.7
4148300440	B743-R28-S, R28 Button Bit, Spherical Buttons	43	1 2/3	2x9	5x9	35°	1	2	0.8
4148300441	B745-R28-S, R28 Button Bit, Spherical Buttons	45	1 7/9	2x9	5x10	30°	1	2	0.9
4148300442	B945-R28-S, R28 Button Bit, Spherical Buttons	45	1 7/9	3x8	6x9	35°	1	3	0.9
