Name: T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: टी38-76मिमी
Price: 508.50 USD
Availability: InStock

होम उत्पाद रॉक ड्रिलिंग उपकरण

T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	MIROC
प्रमाणन:	ISO
मॉडल संख्या:	टी38-76मिमी

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
प्रसव के समय:	20-30
आपूर्ति की क्षमता:	3000

संपर्क करें

विस्तृत उत्पाद विवरण

उत्पाद:	T38-76mm बटन बिट	बटन आकार:	बैलिस्टिक, गोलाकार, समग्र बटन
आवेदन:	बेंच ड्रिलिंग, भूमिगत उत्पादन ड्रिलिंग, लंबे छेद ड्रिलिंग	शरीर:	रेट्रैक स्कर्ट, स्टैंडर्ड स्कर्ट
मुख्य शब्द:	रॉक ड्रिलिंग बिट	प्रयोग:	रॉक ड्रिलिंग
प्रमुखता देना:	T38-76mm Threaded Button Bit , Ballistic Buttons Rock Drill Bit , Spherical Buttons Tungsten Carbide Button Bit

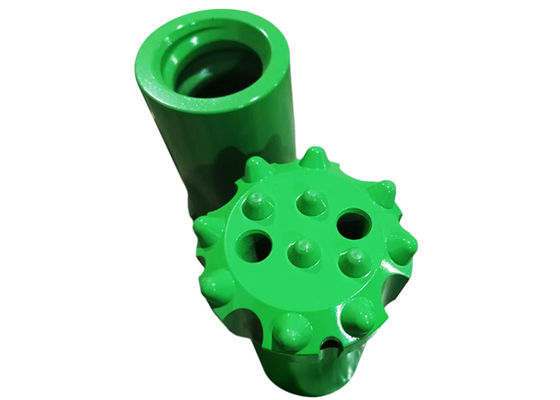

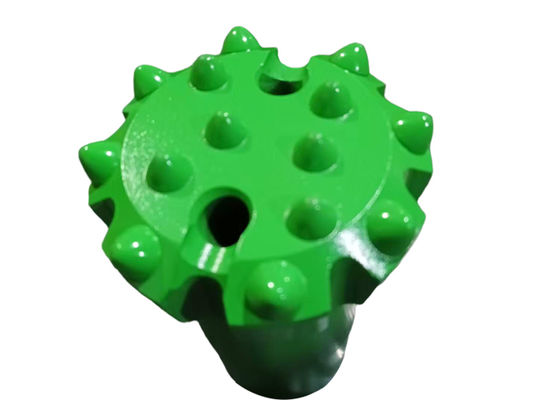

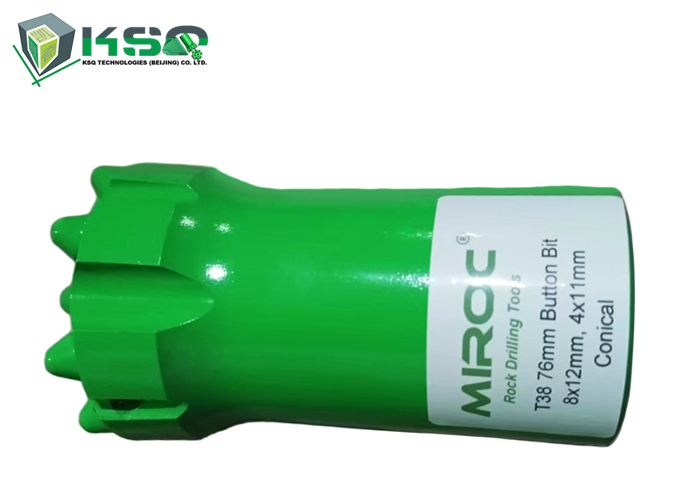

T38-76mm Tungsten Carbide Threaded Button Bit

Product Description

Description: Threaded button bit

Raw material: Alloy steel and tungsten carbides

Thread: R25, R28, R32, R35, R38; T38, T45, T51, T60, ST58, ST68

Face: Flat front, drop center

Diameter: 35mm-127mm

Carbide: Ballistic, conical, spherical

Color: Customized

Application: Used to drill deep holes in underground mines, open pit mines, and tapholes

Customization: Thread, diameter, buttons number, button type, and flushing holes can be customized according to client's requirements and drawings

Key Features

Premium material with high-quality alloy steel and tungsten carbide from internationally renowned brands
Advanced heat treatment technology for high wear resistance
High toughness and wear resistance
Rich production experience and market feedback data from clients
Large capacity, stable quality, short lead time, competitive pricing

Specifications of Button Bits (T38)

Bit Dia. (mm)	Buttons and Size (mm)	Flushing Hole	Weight (kg)
64	3×10, 1×10 (Front) 6×11 (Gauge)	3 (Front)	1.7
70	3×10, 1×10 (Front) 6×12 (Gauge)	3 (Front)	1.8
76	3×11, 1×11 (Front) 6×12 (Gauge)	3 (Front) 1 (Side)	2.6
89	3×11, 2×11 (Front) 6×13 (Gauge)	3 (Front) 1 (Side)	3.3
