| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | MIROC |
| प्रमाणन: | ISO |
| मॉडल संख्या: | 12° 41 मिमी |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| प्रसव के समय: | 20-30 |
| आपूर्ति की क्षमता: | 3000 |
| लंबाई: | ठूंठ-लंबाई | सामग्री: | मिश्र धातु स्टील और टंगस्टन कार्बाइड्स |
|---|---|---|---|
| लागू उद्योग: | उत्खनन, छोटे छेद की ड्रिलिंग, खनन | शंकु: | 6/7/11/12 डिग्री |
| कोण: | 15°, 35° | बटन आकार: | गोलाकार / बैलिस्टिक |
| रॉक क्लास: | नरम, मध्यम और कठोर | सेवा: | लंबी सेवा जीवन और कम ड्रिलिंग लागत |
| प्रमुखता देना: | 12° 41mm rock drilling bit,quarrying taper button bit,high-quality rock drilling tool |
||

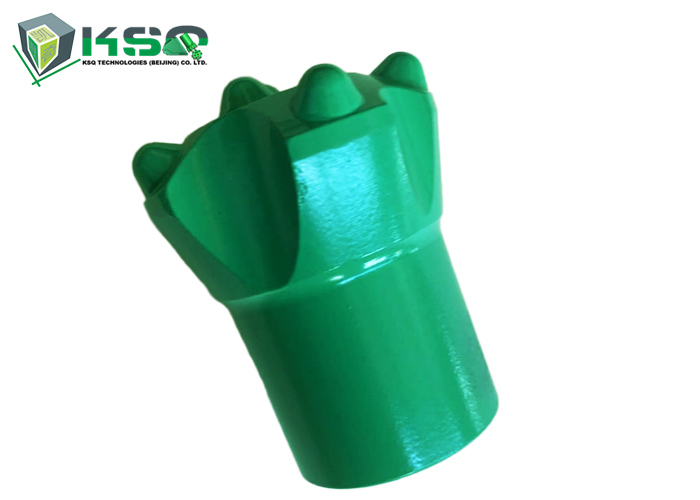

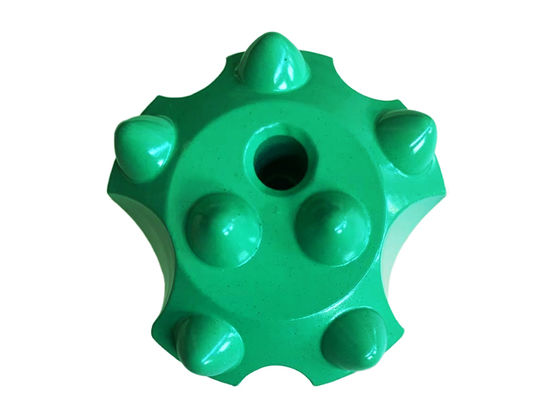

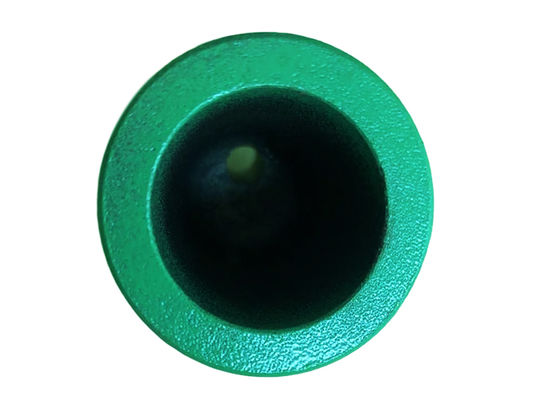

KSQ tapered bits are ideal for short hole drill & blast, as well as roof bolting applications. As a Chinese leading manufacturer of rock drilling bits, we have rich experience in researching and producing high-quality products. Our products are sold worldwide and have gained significant trust and praise from customers.
Tapered button bit diameter: 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm etc.
Tapered button bit degree: 7°, 11°, 12° etc.
| Tapered drilling tools Types | Diameter (mm) | Taper Angle (Degree) | Skirt | Weight (kg) |
|---|---|---|---|---|
| Tapered chisel bits | 20-60mm | 4°,6°,7°,11°,12° | Normal, Length | 0.15 - 0.45 |
| Tapered cross bits | 32-60mm | Normal, Length | 0.18 - 0.7 | |
| Tapered button bits | 30-55mm | Normal, Length | 0.2 - 0.5 |
| Part Number | Bit Diameter (mm) | Bit Diameter (inch) | Front Buttons (No. x mm) | Gauge Buttons (No. x mm) | Angle | Front Flushing Holes | Side Flushing Holes | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 4148300271 | 41 | 1 3/5 | 2x7 | 5x9 | 35° | 1 | 1 | 0.41 |
| 4148300272 | 32 | 1 1/4 | 2x7 | 5x7 | 35° | 1 | 1 | 0.3 |
| 4148300273 | 33 | 1 2/7 | 2x7 | 5x7 | 35° | 1 | 1 | 0.31 |
| 4148300274 | 33 | 1 2/7 | 2x7 | 6x7 | 40° | 2 | 1 | 0.31 |
| 4148300275 | 35 | 1 3/8 | 2x7 | 6x7 | 40° | 2 | 1 | 0.35 |
| 4148300276 | 38 | 1 1/2 | 2x7 | 5x9 | 35° | 1 | 1 | 0.41 |
| 4148300277 | 41 | 1 3/5 | 2x7 | 5x9 | 35° | 1 | 1 | 0.42 |
| 4148300278 | 35 | 1 3/8 | 2x7 | 5x9 | 35° | 1 | 1 | 0.38 |
| 4148300279 | 36 | 1 3/7 | 2x7 | 5x9 | 35° | 1 | 1 | 0.39 |
| 4148300280 | 38 | 1 1/2 | 2x7 | 5x9 | 35° | 1 | 1 | 0.41 |
| 4148300281 | 41 | 1 3/5 | 2x7 | 5x9 | 35° | 1 | 1 | 0.42 |
