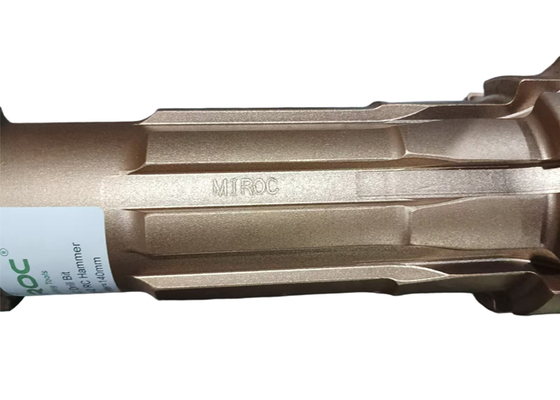

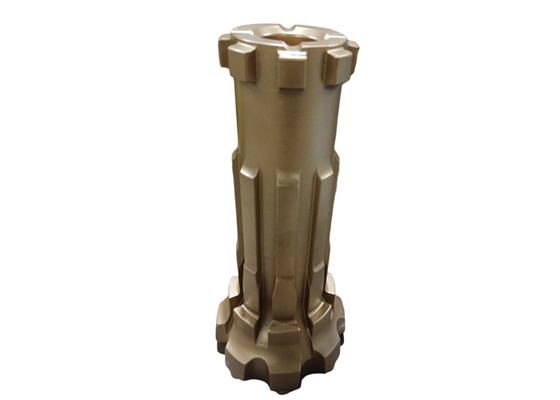

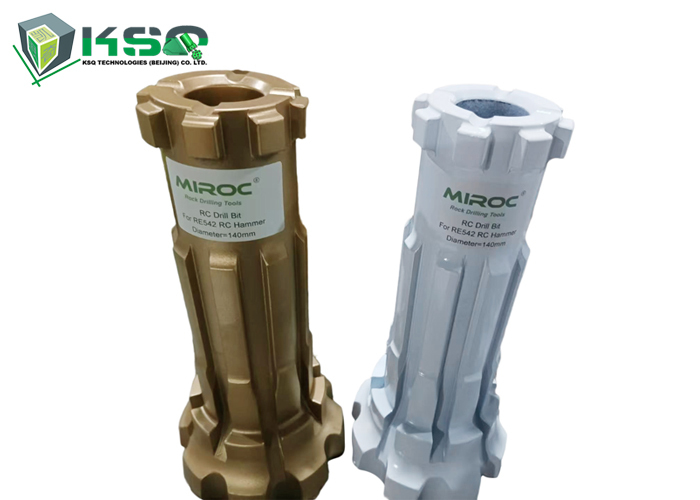

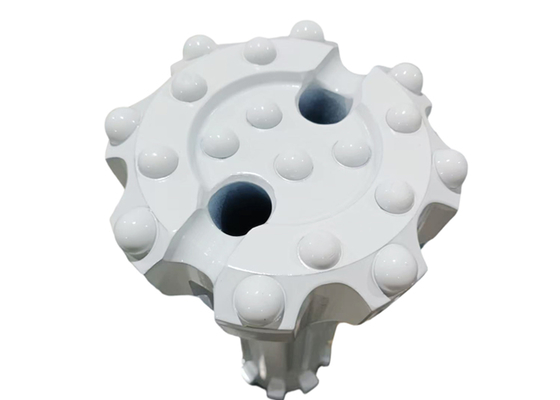

Reverse Circulation DTH Drilling Tools RE542 RC Hammer Bit

Reverse Circulation DTH Drilling Tools RE542 RC Hammer Bit

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: MIROC
प्रमाणन: ISO
मॉडल संख्या: RE542
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1
प्रसव के समय: 20-30
आपूर्ति की क्षमता: 3000
संपर्क करें
विस्तृत उत्पाद विवरण
आवेदन: खदानों, जल विज्ञान और पानी में छेद ड्रिलिंग, गठन: जटिल बजरी निर्माण
गुणवत्ता: श्रेष्ठ मॉडल संख्या: RE004, RE542, PR52, PR54R
प्रकार: आरसी ड्रिलिंग उपकरण उपयोग: खनन, खोज
प्रमुखता देना:

Reverse Circulation DTH hammer bit

,

RC drilling tools RE542

,

Rock drilling hammer bit

Product Description

Reverse circulation hammers and bits are used in exploration and grade control applications to obtain an accurate sample with no risk of contamination. KSQ offers a range of reverse circulation hammers and drill bits that provide outstanding performance coupled with reliability and simplicity.



Reverse circulation drilling (RC) is a drilling technique that allows samples to be retrieved with minimal contamination. Drilling is typically done using a down-the-hole, tricone, or triblade bit. The samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall. This quick execution technique is usually performed within a diameter of 150 mm and a depth that varies between 50 and 200 meters.



Our Advantages

1.Sturdiness
2.Samples extracted are reliable and free of contaminants;
3.The method is timely and cost-efficient
4.Long life
5.Reverse circulation drilling is simple and easy.
6.High penetration rates, and it has minimal environmental impact



Available Sizes
  • 3" RC Bits: diameter (86mm-102mm), shank (RE531)
  • 4" RC Bits: diameter (114mm-127mm), shank (RE004, RE004R)
  • 4.5" RC Bits: diameter (121mm-133mm), shank (RE542, RE543)
  • 5" RC Bits: diameter (113mm-146mm), shank (RE545, PR40)
  • 5.5" RC Bits: diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)
