| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | MIROC |
| प्रमाणन: | ISO |

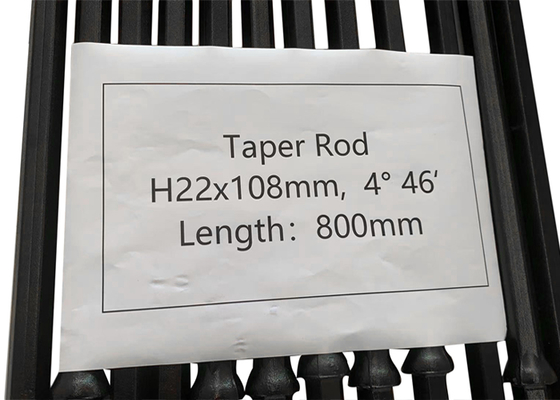

| मॉडल संख्या: | H22x108 मिमी टेपर ड्रिल रॉड 4 ° |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| प्रसव के समय: | 20-30 |
| आपूर्ति की क्षमता: | 3000 |
| प्रयोग: | कोयला खनन, अयस्क खनन, रॉक ड्रिलिंग | सामग्री: | उच्च मैंगनीज स्टील |
|---|---|---|---|
| रंग: | काला | विनिर्देश: | Hex19/hex22/hex25 |
| फ़ायदा: | टूट फुट प्रतिरोधी | आकार: | आकार अनुकूलित करें |
| प्रमुखता देना: | H22x108mm taper drill steel rod,top hammer drilling steel rod,800mm taper drill rod |
||

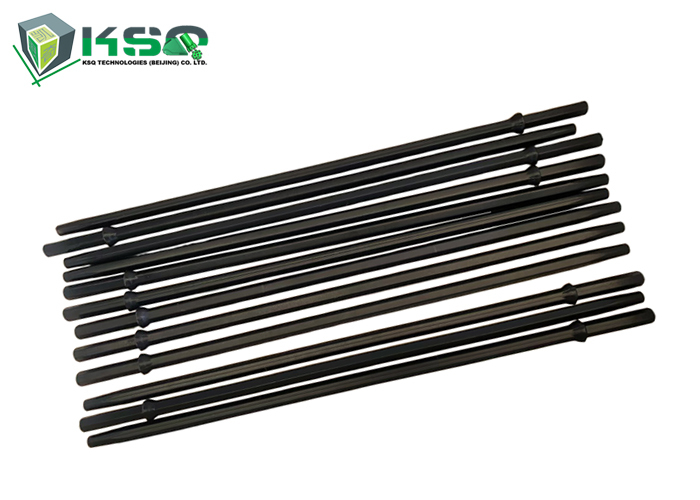

With one side connected to rock drill and the other side connected with taper drill bit, the taper drill rod transmits power from rock drill to bit, drilling work is thus performed. Tapered drill rod is a further development of the integral drill rods. It usually has a forged collar to maintain the proper shank striking face position in the rock drill. Tapered drill rod effective lengths are measured from the collar to the bit end, which are usually from 0.6meter to 3.6 meters.
Drilling duties in tunneling, construction, mining, quarrying, etc.
| Model | Taper Degree | Drilling Rod Length | Shank Size |
|---|---|---|---|
| Hex.19mm | 4, 6, 7, 11 and 12 | 0.4m-4.0m | 83mm,108mm |
| Hex.22mm | 4, 6, 7, 11 and 12 | 0.4m-4.8m | 108mm |
| Hex.25mm | 4, 6, 7, 11 and 12 | 0.8m-4.8m | 108mm,159mm |
