| उत्पत्ति के प्लेस: | चीन (मुख्यभूमि) |
| ब्रांड नाम: | MIROC |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | T38 500 मिमी |
| न्यूनतम आदेश मात्रा: | 1 टुकड़े |
|---|---|
| पैकेजिंग विवरण: | गत्ते का डिब्बा या लकड़ी के बक्से |
| प्रसव के समय: | 5-15 कार्य दिवसों |
| भुगतान शर्तें: | एल/सी, टी/टी |
| आपूर्ति की क्षमता: | प्रति माह 20,000 मोहरे |
| सामग्री: | कार्बन स्टील | हालत: | ब्रांड नई |
|---|---|---|---|
| एटलस कोप्को ड्रिफ्टर: | Cop2160, Cop1840, Cop1838, Cop1238 आदि | फुरुकावा ड्रिफ्टर: | HD715, HD712, HD612, HD609, HD300 आदि |
| लंबाई: | 380mm-1180mm | ||
| हाई लाइट: | ड्रिल बिट टांग एडाप्टर,पिरोया टांग ड्रिल बिट अनुकूलक |
||

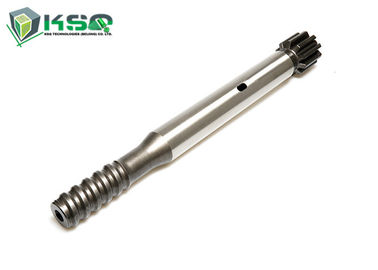

T38 T45 T51 Atlas Copco Drill Striking Bar Shank Adapter for Top Hammer Consumables
Shank adaptor or shank adapter/striking bar, the task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
The shank adapters from KSQ are there fore designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Tamrock series drifters, Garden Dever series drifters etc.
Detail:
Two flushing options of shank adapters: internal or external
- Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string
- External flushing, holes or a slot are required in the side of the shank adapter.These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank
- External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water
The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least 5 to 14-spline configuration, Pneumatic shanks tend to have internal or through flushing and can generally be identified by their lugs or 4-spline configuration.
Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters
Other Shanks:
| Rock Drill | Thread | Length (mm) | Weight (Kg) |
| COP 1550 EX COP 1830 EX |
T38 | 730 | 10.1 |
| T45 | 730 | 10.5 | |
| T51 | 730 | 10.7 | |
| COP 1840 HE COP 1850 |
T45 | 565 | 7.2 |
| T51 | 565 | 7.4 | |
| BBC 43 BBC 44 BBC 45 BBC 100 |
R32 | 380 | 2.2 |
| COP 1036 COP 1038 HB |
R32 | 500 | 4.3 |
| T38 | 500 | 4.7 | |
| T45 | 500 | 5.3 | |
| COP 1038 HD COP 1238 |
R32 | 485 | 4.3 |
| R38 | 485 | 4.5 | |
| T38 | 485 | 4.5 | |
| URD 475 URD 550 VL 120 EVL 130 VL140 F16 |
R32 | 330 | 3.6 |
| R38 | 350 | 3.8 | |
| T38 | 380 | 3.9 | |
| T38 | 446 | 4.3 | |
| YH65 YH80 |
T38 | 500 | 5.8 |
| T45 | 500 | 6.1 | |
| HD609 | T38 | 620 | 6.2 |
| T38 | 690 | 6.5 | |
| T45 | 620 | 6.9 | |
| HD 612 | T45 | 710 | 9.2 |
| HD 712 | T45 | 788 | 11.2 |
| HL 500S-38 HL 510S-38 HL 510B HL 510HL |
R32 | 460 | 3.9 |
| R38 | 460 | 4.1 | |
| T38 | 460 | 4.1 | |
| R38 | 500 | 4.3 | |
| T38 | 500 | 4.3 | |
| HL 600-45 HL 600S-45 |
T38 | 600 | 6.7 |
| T45 | 600 | 6.7 | |
| R32 | 525 | 5.9 | |
| T38 | 525 | 6 | |
| T45 | 525 | 6.1 | |
| HC80 HC90 HC105 |
R32 | 440 | 5.1 |
| R38 | 440 | 5.3 | |
| T38 | 440 | 5.3 | |
| T38 | 500 | 5.8 | |
| HC 80R HC 120R HC 150R |
T45 | 670 | 8.3 |
| T51 | 670 | 8.3 | |
